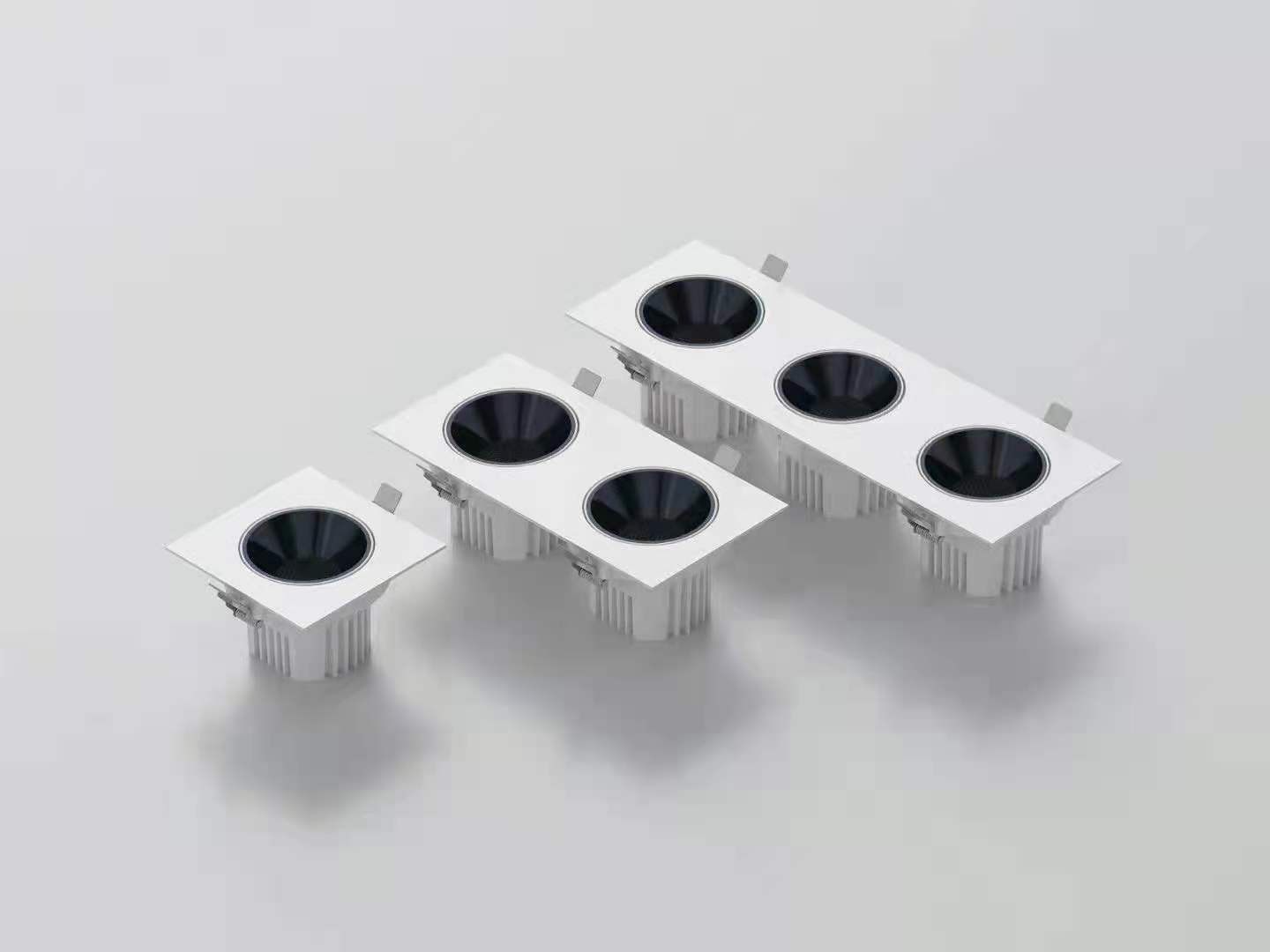

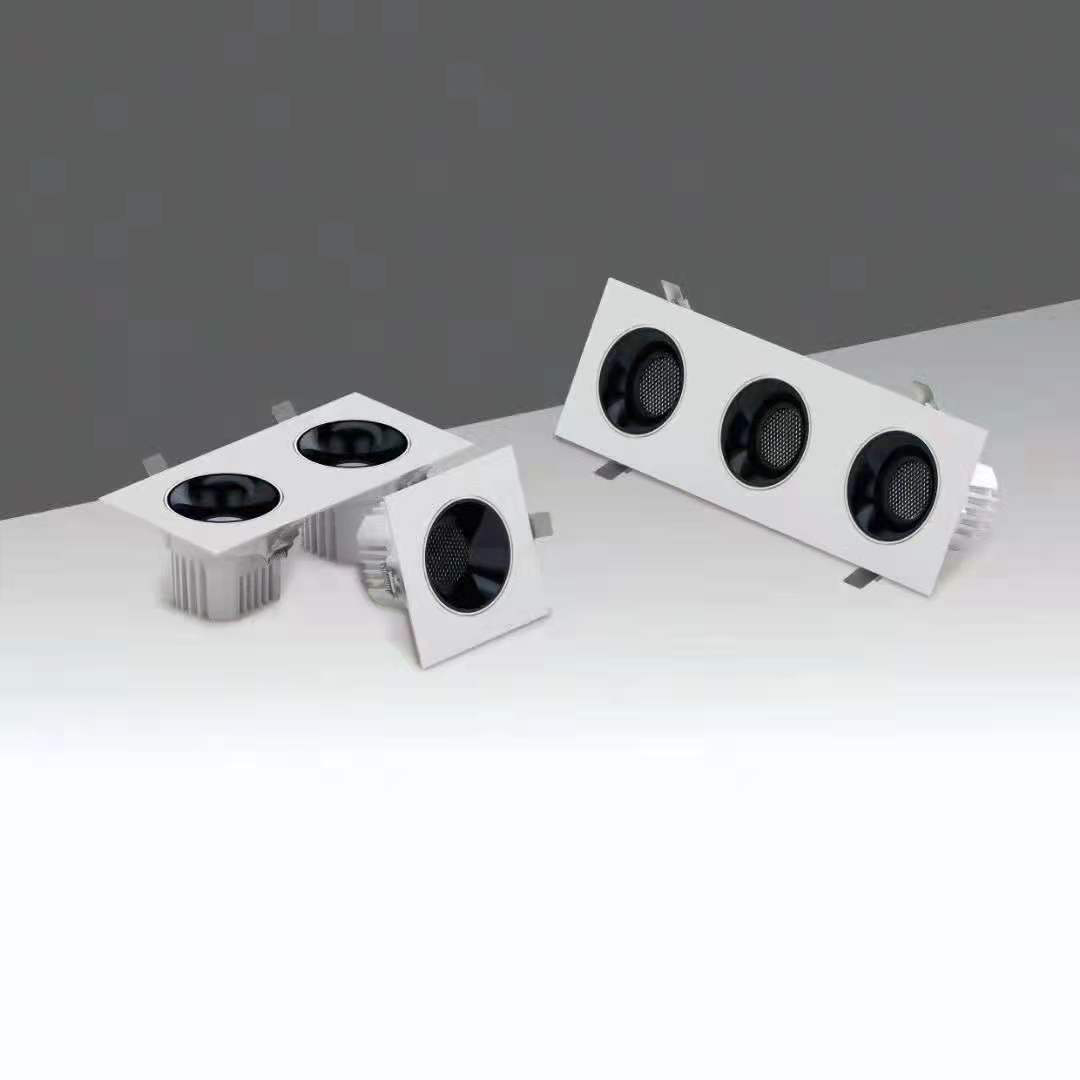

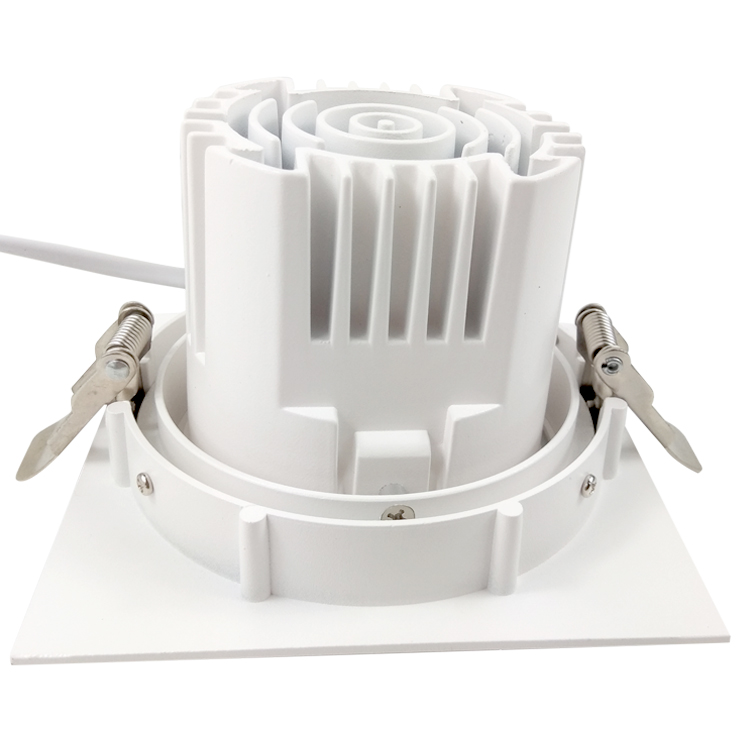

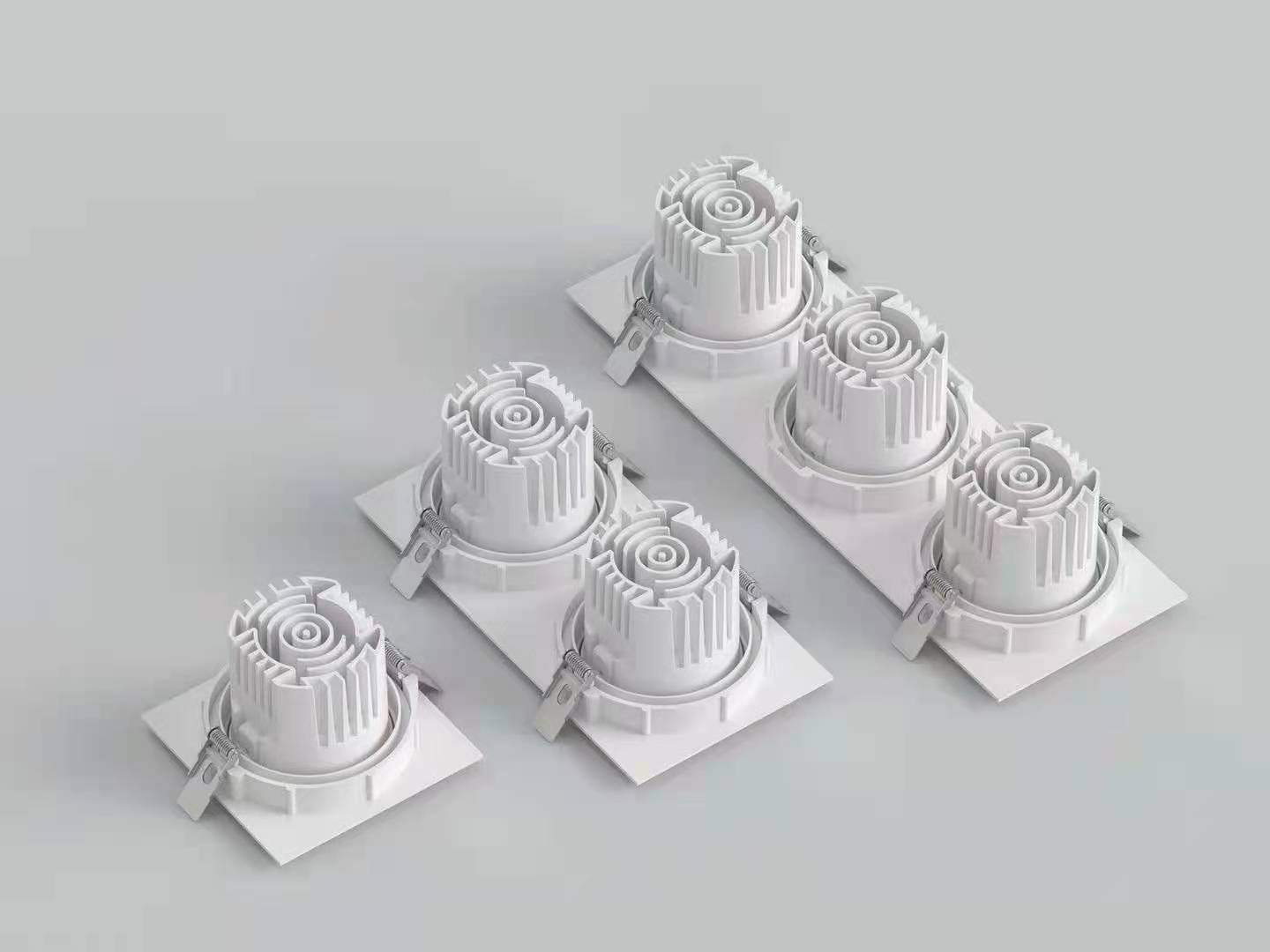

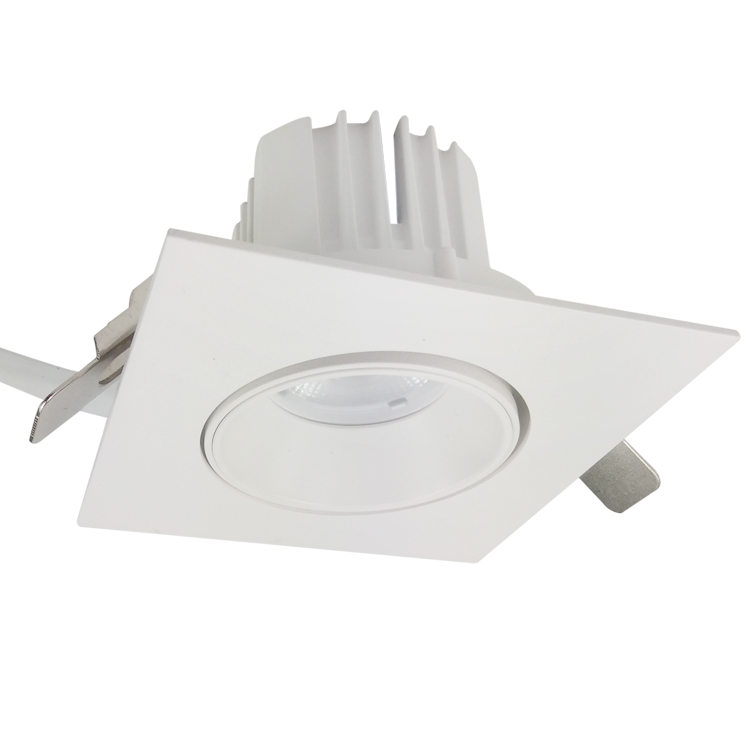

Adjustable One Head Dimming Aluminum Alloy Square Downlight Recessed COB LED Grille Downlight
- Input Voltage AC220-240V or AC110-130V
- Color:White/Black
- Light source:CREE/CITIZEN/PHILIPS/OSRAM
- Driver:Lifud/Eaglerise/Philips/Euchips/Letch
- Beam angle:12° 24° 36°
- Dimmable way:Non-dimmable/Triac dimmable/0-10V dimmable/Dali dimmable(Standard is non-dimmable)
- Luminous Efficacy:80lm/w/90lm/w/100lm/w
- CRI: CRI80+/CRI90+/CRI95+
- CCT:2700K/ 3000K / 4000K / 5000K/ 6000K
- IP Rating:IP20
- Warranty: 3 years or 5 years(Standard is 3 years)
Product details:
 |  |
Product parameter:
| Item no. | Watts | Dimension | Hight | Outcut | Beam angle |
| GDL-1003 | 12W | 115*115mm | 70mm | 100*100mm | 12° 24° 36° |
| GDL-1004 | 20W | 138*138mm | 90mm | 125*125mm | 12° 24° 36° |
| GDL-1005 | 35W | 163*163mm | 110mm | 150*150mm | 12° 24° 36° |
LED Chip Choice:
LED Driver Choice:
Led Grille light series:
Application:
Factory View:
Warehouse&goods delivery:
FAQ:
1.Are you Manufacturer?
Yes,we are manufacturer.
2.Where is your factory?
We are in Foshan city, about 1 hour near Guangzhou Baiyun international airport.
3.Can we buy samples?
Yes,you can buy samples.
4.Is there MOQ?
For the standard products and standard color,we do not have MOQ.
5.Can we use our gift box?Can we laser the logo on the products?
Yes, you can laser your logo on the products,there is MOQ for 50pcs. You can use your gift box,the MOQ is 500pcs.
6.What is the warranty for the products?
There are 3 years and 5 years two choice.Depends on the driver you choose.Tridonic and Philips can do 5 years,other brands warranty is 3 years.
7.How do you deal with the broken prducts within the warranty time?
We can send you the bad accessory parts to you for replacement or send the new products for next shipment.
