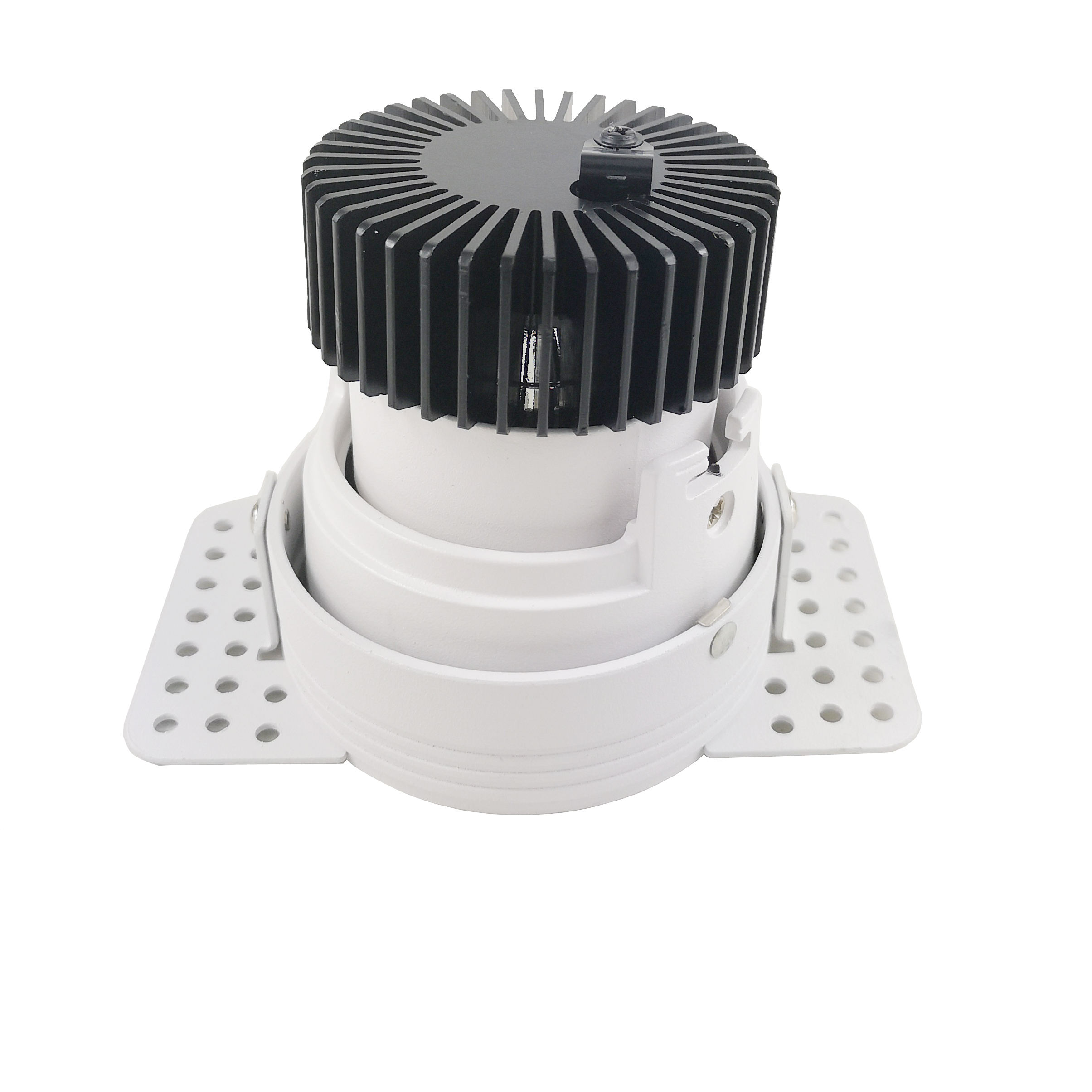

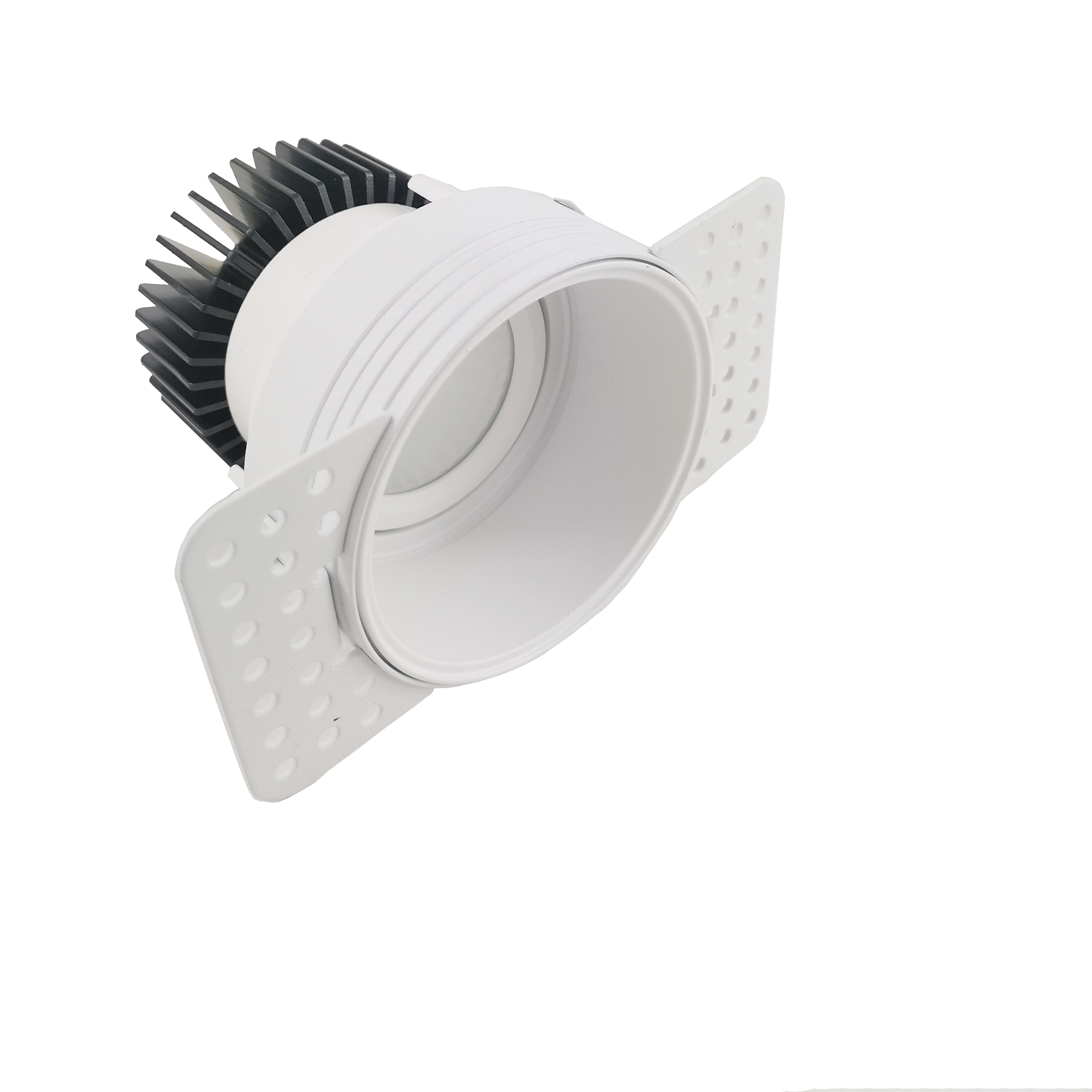

Aluminium Antiglare 8w 12w 20w White Black Recessed Trimless COB LED Downlight
- Material:Aluminium Alloy
- CRI:80/90
- Light Source:CREE/CITIZEN/Philips
- Dimmable way:Non-dimmable/Triac dimmable/0-10v dimmable/Dali dimmable
- Application:Home Office, Residential
- Lifespan (hours):30000 or 50000
- Input Voltage(V):110-130v or 220-240v
- IP Rating:IP20
- Certification:CE RoHS
- Install Style:Embeded
- Switch Type:Touch On/Off Switch
- Warranty(Year):3 Years or 5 years
Product details:
 |  |
Product parameter:
| Model | Power | Lumen | Beam angle | CCT | Dimension | Outcut |
| RGL-1024-1 | 8W | 640lm | 24° 60° | 27K/3K/4K/5K | Ø60*H65 mm | Ø65mm |
| RGL-1024-2 | 12W | 980lm | 24° 36°60° | 27K/3K/4K/5K | Ø80*H85 mm | Ø85mm |
| RGL-1024-3 | 20W | 1600lm | 24° 36°60° | 27K/3K/4K/5K | Ø95*H85 mm | Ø85mm |
LED Chip Choice:
LED Driver Choice:
Beam Angle:
1. Narrow beam angle:less than 20°,for focus lighting, light sculpture,arts and crafts etc.
2. Middle beam angle:less than 30°，for wall washer, light wall painting etc.
3. Flood beam angle:bigger than 30°，for floodlighting, light cabinet,floor etc.
Color Temperature Explanation:
Installation manual:(installation manual 1):
Application:
Trimless product series:
Factory:
FAQ:
1.Are you Manufacturer?
Yes,we are manufacturer.
2.Where is your factory?
We are in Foshan city, about 1 hour near Guangzhou Baiyun international airport.
3.Can we buy samples?
Yes,you can buy samples.
4.Is there MOQ?
For the standard products and standard color,we do not have MOQ.
5.Can we use our gift box?Can we laser the logo on the products?
Yes, you can laser your logo on the products,there is MOQ for 50pcs. You can use your gift box,the MOQ is 500pcs.
6.What is the warranty for the products?
There are 3 years and 5 years two choice.Depends on the driver you choose.Tridonic and Philips can do 5 years,other brands warranty is 3 years.
7.How do you deal with the broken prducts within the warranty time?
We can send you the bad accessory parts to you for replacement or send the new products for next shipment.
